Micro Infusion Pump iPRECIO^®

Infusion Method	Rotary Finger Method (patented peristalsis)
Reservoir	130μL Built-in Elastic Reservoir (Medical Grade SEBS)
Tubing	Inner Tubing ： (Material)Medical Grade SEBS Outer Tubing ： (Material)Medical Grade SEBS (3Fr) (Size) Inner Diameter ：0.55mm / Length ：approx. 140mm
Refill Port	φ2mm refill port is on the top of the pump.
Data Communication	Wireless (Frequency : 916.15 MHz ＊North America / FCC)              (Frequency : 864.35 MHz ＊Europe / CE) Communication Distance ： 3 meter radius of transmitter (This is based on open field condition)
Antenna	A wire anntena attached to the pump (length: approx. 50mm, not removable) *Material of Wire anntena: Titanium (φ0.1mm), Coated by 1.2 Fr Polyurethane Tubing
Range of Flow Rate(FR)	0.0 - 10.0µL/hr (Resolution：0.1µL/hr) ＊discharge volume by 1 time rotation of the cam：3.4µL
Accuracy	±5% (under 0 - 80cmH2O pressure)
Battery Life	Continuous driving life : FR 0.1µL/hr：47 days、FR 10.0µL/hr：9 days for Comms Avail of 0 (none). FR 0.1ul/hr 16 days and 10ul/hr 7 days for Comms Avail of 1 minute.
Activation Method	Pump is activated by pressing down the power button placed on the bottom of the pump. On only. Cannot be switched OFF.
Size	24.8(L) x 15.0(W) x 7.2 (H) mm (not including outer catheter and wire antenna)
Weight	3.3g (including outer catheter and wire antenna)
Volume	2.15cc
Type of Usage	Disposable
Package	EO Sterilized blister package (5pcs/box)
sterilization	2 years

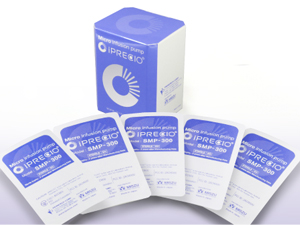

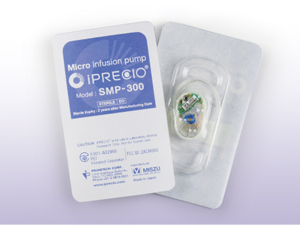

	Sterilized Blister Package		Pump (5pcs/box ) SMP-300

iPRECIO^® Management System

Data Communication Device

Interface	Ethernet(crossed cable) Operates via intranet/internet by setting fixed IP address with the data communication device.
Communication with Pump	Wireless (Frequency： 916.15 MHz ＊North America / FCC)              (Frequency：864.35 MHz ＊Europe / CE) (Not broadband, individual communication between data communication device and pumps.)
Power Supply	AC Adaptor and cable inclued.　[Weight] 73g [Length of cable] 1.85m [I/P] 100-240V 50/60Hz 25VA [O/P] DC 5V 2A
Size / Weight	120(L) x 77 (W) x 31(H) mm / 167g
Accessories included	1 Ethernet cable(3m)

Management Software

Study Management	Study Information, Animal Information, Group Information
User Account	Register, manage user account name and password, Administrator Information
Automated Recognition of Pump	Pump's ID and Calibration Factor are recognized by wireless data communication.
Pump Programming via Software
> Programmable Parameters	Start day / time, Flow rate or Dose Setting, Duration of infusion
> Programming Infusion Steps	You can configure in maximum 16 steps of flow rate (or volume) as needed. Also grouping of multiple steps and repeating such groups are available.
> Auto Calculation of Battery usage and infusion duration	When you input infusion protocol, it shows automatically remaining battery(time) and infusion duration (start and end time of each steps) on the window.
> Dead Volume Setting	Using value calculated by catheter size(diameter) and length or input measured actual volume.
> Flushing Setting	Available KVO Setting (Flow Rate : xx μL/hr, Duration ：xx days) You can load preset default values or set dead volume and flow rate for each study.
Monitoring, Management of infusion shcedule	Manage infusion volume and schedule, Checking and record refill and replacement of infusate timing, Setting threshold of remaining volume in the reservoir, Showing alart inside the window
Log	After infusion , you can export study data and infusion log in CSV format. Infusion log is transfered to the software in order by wireless data communication during infusion.
PC OS compatible	Windows 7, 8, 8.1 (32 bit and 64 bit) Japanese and English Language with major PC manufacturer

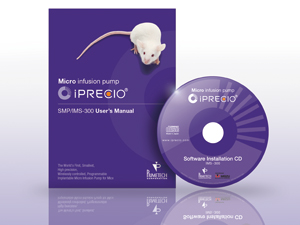

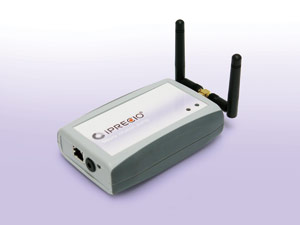

	Data Communication Device (UCD-300)		Management Software

*iPRECIO^® Management System is sold as IMS-300 which consists of data communication device (UCD-300) and Management Software, User Manual.
