Micro Infusion Pump iPRECIO®
Infusion Method |
Rotary Finger Method (patented peristalsis) |
Reservoir |
130μL Built-in Elastic Reservoir (Medical Grade SEBS) |
Tubing |
Inner Tubing : (Material)Medical Grade SEBS
Outer Tubing : (Material)Medical Grade SEBS (3Fr)
(Size) Inner Diameter :0.55mm / Length :approx. 140mm
|
Refill Port |
φ2mm refill port is on the top of the pump. |
Data Communication |
Wireless (Frequency : 923.1 MHz *North America / FCC)
(Frequency : 865.5 MHz *Europe / CE)
Communication Distance :
1-6 meter radius of transmitter (This is based on open field conditions)
|
Antenna |
Embedded FPC pattern antenna inside a pump
|
Range of Flow Rate(FR) |
0.0 - 10.0µL/hr (Resolution:0.1µL/hr)
*discharge volume by 1 time rotation of the cam:3.2µL |
Accuracy |
±5% (under 0 - 80cmH2O pressure) Reservoir volume 20μL to 100μL |
Battery Life |
Continuous driving life : FR 0.1µL/hr:67 days, FR 8.0µL/hr:10 days, FR 10µL/hr:8 days for No-Comms mode Setting (none).
FR 0.1ul/hr : 6.5 days , 8ul/hr : 5 days, 10ul/hr : 5 days for Comms Avail of 1 minute.
|
Power On & Activation Method |
Pump is switched ON magnetically. (S Pole -ON & N Pole - OFF) magnetic strength > 100mT. Pump activation is programmed in Infusion Profile (Group ID)
|
Size |
24.8(L) x 15.0(W) x 7.4mm partially 8.2 (H)Max mm
(not including outer catheter)
|
Weight |
3.4g or less (including outer catheter)
|
Volume |
2.26cc |
Type of Usage |
Disposable (Not designed for re-use)
|
Package |
EO Sterilized blister package (5pcs/box) |
sterilization |
2 years |
|
|
|
|
|
|
Sterilized Blister Package |
|
Pump (5pcs/box ) SMP-310R |
|
iPRECIO® Management System
Data Communication Device
Interface |
Ethernet(crossed cable)
Operates via intranet/internet by setting fixed IP address with the data communication device. |
Communication with Pump |
Wireless (Frequency: 923.1 MHz *North America / FCC)
(Frequency:865.5 MHz *Europe / CE)
(Not broadband, individual communication between data communication device and pumps.)
|
Power Supply |
USB adapter included [Weight] 35g [Length of cable] 1.1m
DC Output : 5V 0.5A
|
Size / Weight |
145(L) x 95 (W) x 55(H) mm / TBD
|
Accessories included |
1 Ethernet cable(3m), USB DC adapter cable(1.1m)
|
Management Software
Study Management |
Study Information, Animal Information, Group Information |
User Account |
Register, manage user account name and password,
Administrator Information |
Automated Recognition of Pump |
Pump's ID and Calibration Factor are recognized by wireless data communication. |
Pump Programming via Software |
> Programmable Parameters |
Start day / time, Flow rate or Dose Setting, Duration of infusion |
> Programming Infusion Steps |
Maximum of 15 steps (including KVO) of flow rate (or dose) as needed. Grouping of multiple steps and repeating such groups are available.
|
> Auto Calculation of Battery usage and infusion duration
|
When you input infusion protocol, it shows automatically remaining battery(time) and infusion duration (start and end time of each steps) on the window. |
> Dead Volume Setting |
Using value calculated by catheter size(diameter) and length or input measured actual volume. |
> Flushing Setting |
Available KVO Setting (Flow Rate : xx μL/hr, Duration :xx days)
You can load preset default values or set dead volume and flow rate for each study. |
Monitoring, Management of infusion shcedule |
Manage infusion volume and schedule, Checking and record refill and replacement of infusate timing, Setting threshold of remaining volume in the reservoir, Showing alart inside the window |
Log |
After infusion , you can export study data and infusion log in CSV format. Infusion log is transfered to the software in order by wireless data communication during infusion. |
PC OS compatible |
Windows 7 Professional or higher, Windows10 Pro/Enterprise/Education
Japanese and English Language with major PC manufacturer
|
|
|
|
|
|
|

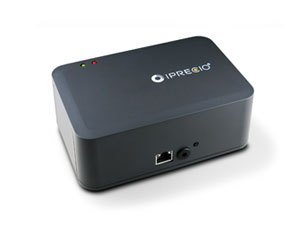

Data Communication Device (UCD-X10R) |
|
Management Software |
|
*iPRECIO
® Management System is sold as IMS-310R which consists of data communication device (UCD-X10R) and Management Software, User Manual.
