Method
Pumps and Programs
The experiment was performed using 15 pumps which were programmed with the same infusion protocols; Instant/Variable mode, 1μl/h, 15μl/h, 30μl/h. The infusion protocols programmed with the iPRECIO Management Software ver. 1.1 rev. 349. In addition, 3 control pumps were used as reference for evaporation rates from the pumps and tubing during the study. Pumps were filled as normal but were not programmed and not activated.
Applying Pressure to Pump Method
The outlet tubing of the 15 test pumps and 3 control pumps were pressurized to 80cmH2O with a water column to simulate in vivo environment for intra-venous infusion.
Assessment Procedure
Change of pump weight was adopted as the method to evaluate the flow rate accuracy of each pump. The initial pump weights with 900μl saline were measured with an analytical digital balance. The decreased pump weights were used as the pumps’ infusion volume. Activated pumps were placed in a 38°C air incubator, and each pump weight was measured twice at two different times daily. The pumps were also refilled with saline warmed to 38°C before the reservoir becomes empty according to the recommended refilling schedule of the management software. After refilling, the new weight becomes the initial pump weight until the next refilling.
Flow Rate Accuracy Calculation Method
The accuracies of the pumps were obtained by comparing the measured total infusion volume of the test pumps with the expected or programmed volume (Scheduled Total Infusion Volume). The global flow rate accuracy of the test pumps at the different time points were obtained by comparing the gradient or slope of the best fit line with the theoretical slope based on flow rate programmed flow rates.
Result

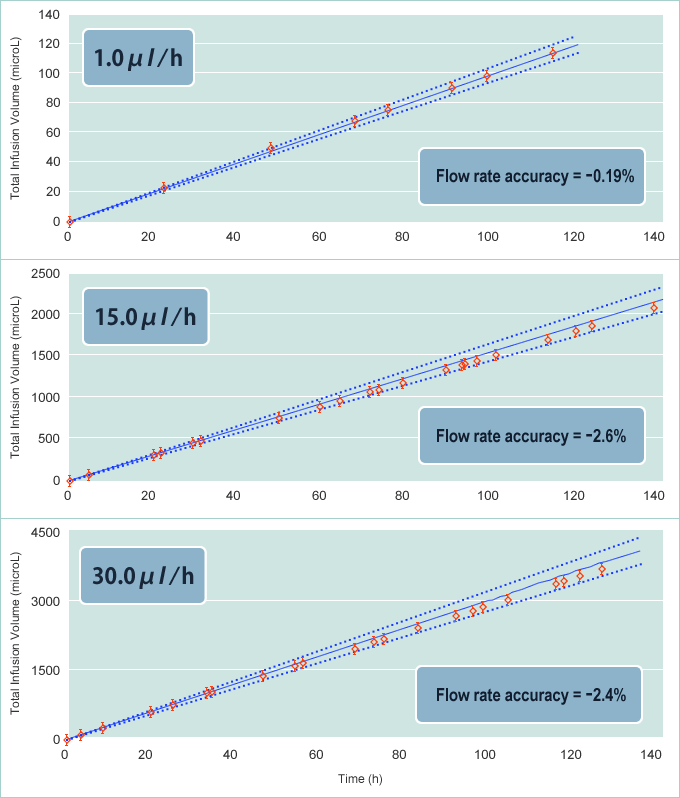

Blue line: Scheduled Total Infusion Volume with +/- 5% dots line.
Best fit lines:
1.0 μl/h: y = 0.9981x + 1.111 (N=14)
15.0 μl/h: y = 14.62x + 3.6905 (N=15)
30.0 μl/h: y = 29.3x - 1.3982 (N=15)
Performance related publications
Perron J., Frenette V., and Copeman C.
Validation and use of the iPRECIO Micro Infusion Pump on GLP studies
Society of Toxicology Annual Meeting, San Francisco, United States, March 11th to 14th 2012
Mitchell D., Read, K., Chapman M. and Patten D.
Intrathecal administration using the iPRECIO implanted pump (Regulatory use)
Development in Life Sciences, Vol 14, No. 4
http://cdn2.hubspot.net/hubfs/212573/docs/Envigo/Envigo_Pharma_Dils_14.4.4.pdf?t=1460116975327
Marcos T. Kuroki, Gregory D. Fink, and John W. Osborn
Comparison of arterial pressure and plasma ANG II responses to three methods of subcutaneous ANG II administration [Open Access]
Vascular Biology and Microcirculation
01 SEP 2014
https://journals.physiology.org/doi/full/10.1152/ajpheart.00922.2013
